Four Translational Paths for Immunomodulatory Peptides in Labs

August 29, 2026
Four Translational Paths for Immunomodulatory Peptides in Labs

Immunomodulatory peptides are short cationic, amphipathic sequences that reshape innate and adaptive immune responses through receptor-mediated signaling, primarily via toll-like receptors and chemokine pathways. Their core mechanisms include TLR modulation, leukocyte chemotaxis, and cytokine rebalancing, and they anchor active research into vaccine adjuvants, anti-infective therapies, and immunotherapy adjuncts. Reference peptides like LL-37, cataloged in the Antimicrobial Peptide Database, and documented research suppliers such as Peptastic Labs give this field a practical, testable foundation.

TL;DR:

  • Immunomodulatory peptides selectively influence TLR signaling, dampening cytokine storms while maintaining chemokine-driven immune cell recruitment.
  • Key peptides like LL-37 and defensins have multifunctional roles, including endotoxin neutralization, dendritic cell activation, and macrophage polarization.
  • Computational triage with machine learning and docking improves candidate selection and can predict target engagement and cytokine response patterns.
  • Delivery challenges such as enzymatic degradation are managed with strategies like nanocarriers, cyclization, D-amino acids, and PEGylation to extend peptide half-life.
  • In vitro results are only partially predictive of in vivo outcomes, emphasizing the need for layered testing, proper models, and cautious reactogenicity assessment.

Table of Contents

How Do Immunomodulatory Peptides Work at the Molecular Level?

Most immunomodulatory peptides start their work at the cell surface, engaging pattern recognition receptors that were built to detect microbial signatures. TLR2, often in heterodimer with TLR1 or TLR6, and TLR4 in complex with MD2, are the two most frequently targeted receptor systems in host defense peptide research. When a peptide like LL-37 binds near these receptor complexes, it doesn't simply block them. It shifts the downstream signaling balance.

That shift matters because TLR engagement triggers two major intracellular cascades: NF-κB, which drives pro-inflammatory cytokine transcription, and the MAPK pathway (p38, JNK, ERK), which shapes cell survival and chemokine output. Immunomodulatory peptides can dampen NF-κB-driven cytokine storms while leaving chemokine signaling intact, or vice versa, depending on peptide structure and the receptor's activation state at the time of binding. This selective uncoupling is what separates an immunomodulator from a blunt anti-inflammatory agent.

Pro Tip: When designing a TLR-binding assay, don't rely on a single cytokine readout like TNF-alpha alone. Pair it with a chemokine panel (CXCL8, CCL2) to catch the dual inhibitory-and-inductive signature that defines true host defense peptide activity.

Beyond receptor engagement, immunomodulatory peptides drive chemotaxis directly. They recruit and activate antigen-presenting cells, monocytes, and neutrophils to sites of infection or tissue damage, often independent of classical chemokine receptors. Several defensins and cathelicidins bind formyl peptide receptor-like 1 (FPRL1), a G-protein-coupled receptor that triggers calcium flux and directional cell migration in monocytes and immature dendritic cells.

At the cellular outcome level, three effects recur across the literature:

  • Macrophage polarization: certain peptides push macrophages toward an M2-like, pro-resolution phenotype rather than a sustained M1 inflammatory state.
  • Neutrophil modulation: peptides can both recruit neutrophils to a site and limit their degranulation, reducing collateral tissue damage.
  • Dendritic cell maturation: peptide-antigen complexes enhance DC uptake and maturation markers, a property directly relevant to adjuvant design.

Sequence-function relationships explain why some peptides are potent immunomodulators and others are inert. Net cationic charge (typically +2 to +9) supports initial electrostatic attraction to negatively charged microbial membranes and receptor surfaces, while hydrophobicity, usually 30 to 50 percent of residues, governs membrane and protein interaction depth. Motif placement matters as much as amino acid composition. Moving a single hydrophobic residue within an amphipathic helix can convert a purely antimicrobial peptide into one with strong immunomodulatory character, or the reverse.

This is where cryptic peptides come in: sequences buried within larger precursor proteins that show no obvious activity until liberated by proteolytic cleavage. Several arthropod-derived cryptic fragments have recently demonstrated TLR-binding capacity that their parent proteins never displayed, a finding with real implications for anyone screening genomic or proteomic libraries for novel candidates.

One of the more consequential findings for adjuvant researchers is that host defense peptides such as LL-37 can bind LPS and modulate TLR signaling to reduce endotoxin-driven TNF production while simultaneously inducing chemokines that recruit leukocytes to the same site. That combination, anti-endotoxin activity paired with active immune cell recruitment, is precisely the profile you want in a peptide meant to control infection without triggering septic-level inflammation. It also explains why the same peptide can look anti-inflammatory in one assay and pro-inflammatory in another. Context and timing of exposure change the outcome. The broader class of cationic host defense peptides is now understood to both kill microbes directly and separately resolve harmful inflammation, a dual mechanism that positions them for infection control and chronic inflammatory disease research simultaneously.

What Are the Key Examples of Immunomodulatory Peptides?

Researchers rarely start from scratch when screening for immunomodulatory activity. A handful of benchmark peptides define the field's structure-function map, and understanding their individual profiles helps you interpret new candidates against known reference points.

LL-37 remains the most studied human cathelicidin, and for good reason. It shows antiviral activity against several enveloped viruses, drives neutrophil and monocyte chemotaxis through FPRL1 engagement, and neutralizes bacterial endotoxin at concentrations well below its direct antimicrobial threshold. Its multifunctionality, documented extensively in host defense peptide reviews, makes it the default positive control in many immunomodulatory screening assays. Researchers building comparative panels typically anchor their LL-37 findings against a detailed reference profile before moving to novel candidates.

Vial with peptide solution on lab bench

Human beta-defensin 2 (hBD-2) and its relative hBD-3 operate on a different axis. Rather than focusing on direct antiviral or anti-endotoxin activity, these defensins excel at dendritic cell activation. hBD-2 recruits immature DCs via CCR6 engagement and promotes their maturation when complexed with antigen, a property that has driven sustained interest in defensins as built-in vaccine adjuvant components. hBD-3 shows a broader chemotactic range, engaging monocytes and T cells alongside dendritic cells, which extends its relevance beyond innate immunity alone into shaping adaptive responses.

IDR-1002 and related innate defense regulator peptides represent the synthetic side of the field. These are not naturally occurring sequences but engineered constructs designed to retain immunomodulatory function while stripping away direct antimicrobial killing activity, which reduces cytotoxicity concerns in downstream development. IDR-1002 selectively induces chemokine production and monocyte recruitment without triggering the pro-inflammatory cytokine surge associated with many natural cathelicidins, making it a useful prototype for researchers studying how much immunomodulatory function can be isolated from antimicrobial killing.

Discovery pipelines are now surfacing a fourth category worth tracking: cryptic peptides pulled from non-obvious sources through computational screening rather than classical bioactivity-guided fractionation. A machine learning and docking pipeline applied to arthropod antimicrobial peptide libraries identified several previously uncharacterized candidates, including SPalf2-453, SBsib-711, and MRh4-679, each shown to bind specific TLR heterodimer complexes with reasonable predicted affinity. None of these have been produced at research scale for confirmatory in vivo work, but they represent exactly the kind of high-confidence lead generation that computational triage was built to deliver: candidates worth synthesizing because their target engagement was predicted before a single wet-lab assay ran.

What ties these four examples together is not shared sequence homology. It's a common capacity to engage pattern recognition receptors in ways that reshape immune cell behavior without requiring the peptide to function primarily as a membrane-disrupting antimicrobial. That distinction is the working definition of the immunomodulatory peptide class as researchers currently use it.

What Therapeutic Applications Are Immunomodulatory Peptides Being Developed For?

Four application areas currently absorb most of the translational research effort, and each draws on a distinct combination of the mechanisms already described.

  1. Anti-infective and antimicrobial resistance strategies. With antimicrobial resistance narrowing the utility of conventional antibiotics, immunomodulatory peptides are being tested both as standalone anti-infectives and as synergistic partners. LL-37 and protegrin-1 have shown enhanced bacterial clearance when combined with colistin against resistant Gram-negative strains, a combination strategy that exploits the peptide's membrane-permeabilizing effect to improve antibiotic penetration while its immunomodulatory arm recruits host immune cells to finish the job. This dual-action approach is particularly relevant given that more than 80 peptide therapeutics have already reached regulatory approval across other indications, establishing that peptide-based drugs can clear the selectivity, specificity, and manufacturability bar required for clinical use.

  2. Vaccine adjuvant development. This is arguably the fastest-moving application area right now. Peptides like hBD-2 and hBD-3 modulate antigen-presenting cell maturation in ways that enhance both neutralizing antibody titers and cytotoxic T lymphocyte responses when co-administered with antigen. The mechanism is straightforward on paper: a peptide-antigen complex gets taken up more efficiently by dendritic cells, and the peptide's own receptor engagement pushes those DCs toward a mature, antigen-presenting state faster than antigen alone would achieve. Host defense peptides show real adjuvant potential in this role, though clinical application remains at an early stage rather than routine practice.

  3. Oncology and immunotherapy adjuncts. Preclinical docking and cell-based studies suggest certain immunomodulatory peptides can act as checkpoint-adjunct candidates, reshaping the tumor immune microenvironment by recruiting and activating antigen-presenting cells within otherwise immunologically cold tumors. This work is earlier stage than the anti-infective and adjuvant applications, largely confined to in vitro co-culture systems and computational binding predictions rather than confirmed in vivo tumor models, but it represents a logical extension of the same APC-recruitment mechanism already validated in vaccine research.

  4. Wound healing and anti-biofilm device coatings. Cationic host defense peptides support tissue repair by simultaneously controlling local microbial burden and modulating the inflammatory phase of healing, helping wounds transition from inflammation to proliferation without prolonged neutrophil-driven tissue damage. Device coatings incorporating these peptides are being explored to prevent biofilm formation on implants, pairing direct antimicrobial action with modulation of the local immune response to foreign material. The dual functionality of cationic host defense peptides in fighting infection while resolving inflammation is precisely what makes them attractive candidates for chronic wound and implant applications where standard antibiotics alone fall short.

None of these four areas has produced a fully approved immunomodulatory peptide therapeutic specifically for its stated indication as of now. What they share is a growing body of mechanistic and preclinical evidence strong enough to justify continued investment, and a clear line of sight from bench mechanism to plausible clinical application.

How Are New Immunomodulatory Peptides Discovered and Prioritized?

Sequence-guided serendipity used to define this field. A researcher would isolate an antimicrobial peptide, notice an unexpected cytokine effect in a side assay, and pursue it from there. That approach still happens, but it's been substantially overtaken by computational triage methods that let researchers screen thousands of candidate sequences before committing bench time to any of them.

Machine learning classifiers, often support vector machines trained on labeled AMP activity data, now scan large peptide libraries to flag sequences with immunomodulatory potential that classical bioactivity screening would have missed entirely. This is how the arthropod-derived cryptic peptides mentioned earlier were surfaced: not through fractionation of active extracts, but through an ML and docking pipeline applied systematically across sequence databases.

Molecular docking, frequently performed with tools like ClusPro, adds a structural layer to that classification. Once an ML model flags a candidate, docking simulations predict how that peptide's three-dimensional structure engages specific TLR heterodimer binding sites, giving researchers a mechanistic hypothesis to test rather than a blind lead. Candidates predicted to engage TLR2/1 or TLR4/MD2 complexes with favorable binding energy move up the priority list for synthesis and in vitro confirmation.

Systems-biology pathway enrichment analysis extends this further by predicting a peptide's likely immunological "fingerprint," which cytokine and chemokine pathways it will activate or suppress, before a single cell-based assay runs. This matters because immunomodulatory peptides act through complex signaling networks whose outcome depends heavily on local cellular environment and disease context, not a single isolated pathway. Predicting that fingerprint computationally helps researchers anticipate reactogenicity risk (the likelihood of an excessive inflammatory response) before investing in expensive animal studies.

Once a candidate clears computational triage, practical prioritization criteria narrow the field further:

  • Physicochemical stability: isoelectric point, net charge, and predicted resistance to aggregation under storage conditions.
  • Cell-penetration profile: whether the peptide needs intracellular access to hit its target or acts purely at the membrane surface.
  • Predicted cytokine footprint: modeled or previously observed cytokine induction pattern, screened against known reactogenic signatures.
  • Synthesis feasibility: sequence length and modified residue requirements that affect solid-phase synthesis yield and cost.

Discovery workflows that combine machine learning, docking, and pathway enrichment consistently produce higher-confidence candidates for adjuvanticity testing than sequence-only screens, which is the core argument for investing in this computational layer before wet-lab work begins. It doesn't replace bench validation. It makes that validation far more likely to succeed on the first pass.

What Delivery and Translational Challenges Limit Immunomodulatory Peptide Development?

The single biggest obstacle standing between a promising in vitro result and a viable therapeutic candidate is enzymatic degradation. Peptides are inherently vulnerable to proteases, trypsin, chymotrypsin, and a range of serum peptidases, that can reduce a peptide's functional half-life to minutes in circulation. This isn't a minor formulation inconvenience. It's the reason many mechanistically elegant candidates never make it past early pharmacokinetic screening.

Several validated engineering strategies address this directly:

  • Nanocarrier encapsulation protects the peptide from enzymatic exposure while enabling controlled, sustained release at the target site.
  • Peptide self-assembly into nanostructures can shield vulnerable bonds and improve tissue targeting simultaneously.
  • Cyclization locks the peptide backbone into a conformation that resists exopeptidase cleavage from either terminus.
  • D-amino acid substitution replaces vulnerable L-residues with their mirror-image counterparts, which most proteases cannot recognize as cleavage sites.
  • PEGylation and targeted conjugation extend circulating half-life and can direct the peptide toward specific tissue compartments.

These approaches are well established in the peptide stability literature and represent the current standard toolkit for anyone moving an immunomodulatory candidate from a Petri dish toward an animal model.

Model selection is the second major translational bottleneck, and it's less discussed than degradation but equally consequential. Standard in vitro immunoassays, cytokine ELISAs on isolated PBMCs, for instance, capture a narrow slice of what happens in a living system with intact vasculature, tissue architecture, and systemic feedback loops. In vitro immunomodulatory activity does not always predict in vivo efficacy, and researchers who skip directly from a promising cytokine assay to a clinical development plan routinely encounter this gap the hard way.

Pro Tip: Before committing to an in vivo efficacy study, run your candidate through a whole-blood cytokine release assay rather than an isolated cell line. Whole blood better preserves the cell-cell interactions that determine whether a peptide's in vitro signature will hold up systemically.

Safety planning has to account for reactogenicity and cytokine storm risk from the earliest design stages, not as an afterthought before a first-in-human trial. Dose-escalation strategies borrowed from adjuvant development, starting well below the predicted effective concentration and monitoring a defined cytokine panel at each step, give researchers an early warning system before scaling toward doses that could trigger excessive systemic inflammation. Combining validated delivery systems with carefully chosen animal models remains the most reliable way to bridge the in vitro to in vivo gap that has stalled more than one promising immunomodulatory candidate.

How Well Do In Vitro Results Predict In Vivo Immune Outcomes?

The correlation between a peptide's in vitro immunomodulatory signature and its actual in vivo performance is inconsistent enough that researchers should treat it as a hypothesis, not a guarantee. A peptide that suppresses TNF-alpha cleanly in an isolated monocyte assay can behave very differently once introduced into a system with intact vasculature, resident tissue macrophages, and systemic cytokine feedback loops.

Part of the disconnect comes from dosing and half-life. In vitro assays typically expose cells to a stable peptide concentration for a fixed window, while in vivo the same peptide faces immediate enzymatic attack and rapid clearance, meaning the effective exposure a target cell receives can be a fraction of what the in vitro data suggested. Researchers should treat cytokine ELISA and reporter-cell readouts as a screening filter rather than a predictive endpoint, since validated delivery systems and appropriate in vivo models remain necessary to demonstrate real translational potential.

Practical testing strategy should layer complexity progressively: isolated cell assays for initial mechanism confirmation, whole-blood or organoid models for a more physiologically relevant intermediate check, and only then a properly powered in vivo model with matched biomarker panels for both efficacy and reactogenicity. Skipping the intermediate layer is where most translational disappointment originates.

What Structural Features Define Immunomodulatory Peptide Classes?

Immunomodulatory peptides are typically short, ranging from roughly 10 to 50 amino acids, and classified structurally into four broad categories that correlate loosely with mechanism.

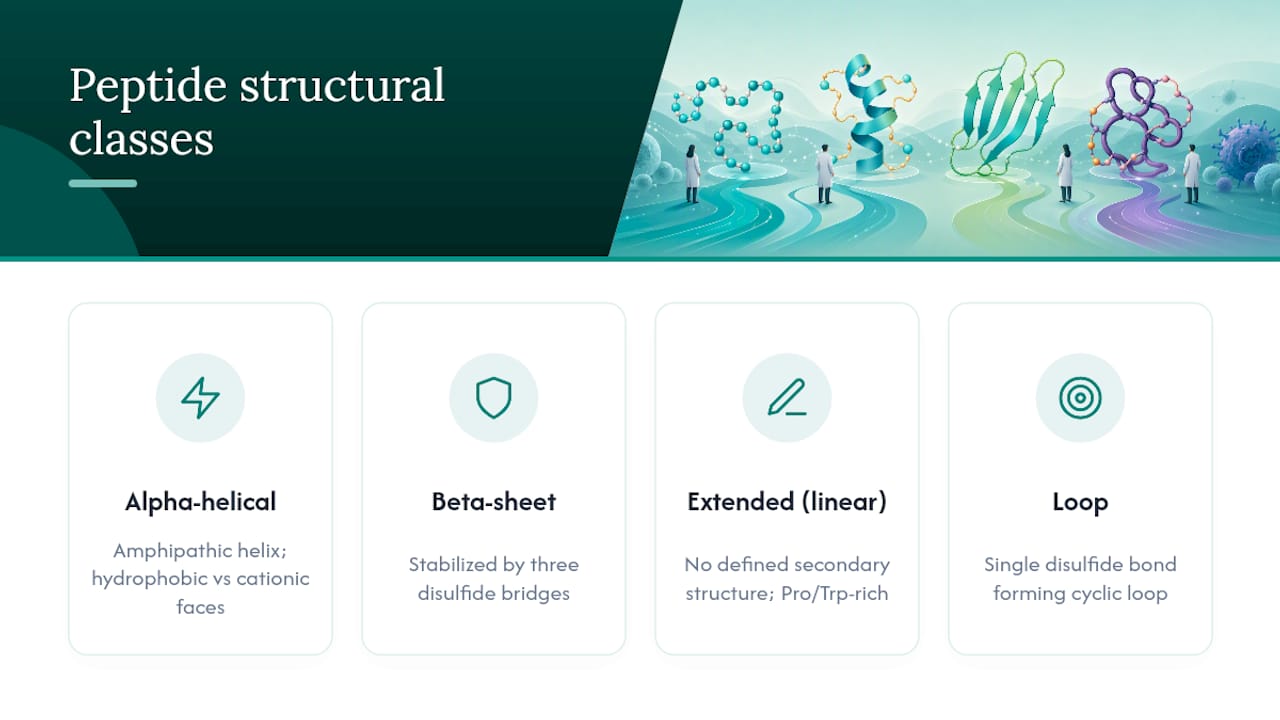

Diagram comparing four peptide structural classes

Alpha-helical peptides, LL-37 being the archetype, adopt an amphipathic helix in membrane-mimetic environments, with hydrophobic and cationic residues segregating to opposite faces. This amphipathicity drives both membrane interaction and receptor engagement.

Beta-sheet peptides, including the defensins, are stabilized by disulfide bonds, typically three intramolecular bridges in human defensins, that lock the peptide into a rigid, protease-resistant scaffold.

Extended or linear peptides lack a defined secondary structure in solution and often rely on a high proportion of a single residue type, proline or tryptophan-rich sequences being common, for their activity.

Loop peptides, stabilized by a single disulfide bond forming a cyclic structure, represent a smaller but structurally distinct category.

Classification by net charge matters as much as secondary structure. Most immunomodulatory peptides carry a net positive charge, though the degree of cationicity correlates with both potency and cytotoxicity risk, which is why sequence engineering often targets a narrow charge window rather than maximizing charge outright. Hydrophobic moment, a measure of how cleanly hydrophobic and hydrophilic residues separate across the peptide's structure, is one of the stronger predictors of both membrane activity and receptor engagement across all four structural classes.

What Are the Safety and Immunogenicity Risks of Immunomodulatory Peptides?

The primary safety concern with immunomodulatory peptides is not classical toxicity in the small-molecule sense. It's excessive or misdirected immune activation, ranging from localized reactogenicity at an injection site to, in the most severe theoretical cases, cytokine storm.

Immunogenicity, the risk that the immune system generates neutralizing antibodies against the peptide itself, is generally lower for short peptides than for larger protein biologics, but it isn't zero, particularly for sequences with repeated or engineered motifs that resemble known epitopes. Researchers working with modified peptides, D-amino acid substituted or PEGylated variants especially, should screen for anti-peptide antibody formation during any repeat-dose study design.

Hemolytic activity is a standard early counter-screen, since many cationic peptides that engage immune receptors also carry some capacity to disrupt red blood cell membranes at higher concentrations. A clean hemolysis profile at the intended working concentration is a minimum bar before advancing a candidate toward more complex assays. Endotoxin contamination during peptide synthesis and purification is a separate but related concern. Any observed cytokine induction has to be distinguished from artifactual LPS contamination through a properly run LAL assay, since a false positive here can send a research program chasing an effect that isn't real.

Dose-response reactogenicity screening, layered cytokine panels checked at escalating concentrations, remains the most practical way to catch a hyperinflammatory signature before it becomes a problem in a more complex model.

What Regulatory Pathways Apply to Therapeutic Peptide Development?

Therapeutic peptides intended for human use follow drug approval pathways rather than the looser frameworks that govern research-use compounds, and the distinction matters enormously for how any given peptide can legally be handled and sold.

In the United States, peptide therapeutics generally proceed through the FDA's New Drug Application pathway when synthetically manufactured, though some peptide products qualify for the abbreviated pathway used for biologics depending on manufacturing complexity and molecular size thresholds. Preclinical requirements mirror those for small-molecule and biologic drugs: toxicology studies, immunogenicity screening, and manufacturing consistency data (often HPLC-based purity verification) all factor into an Investigational New Drug application before human trials can begin.

Compounds sold explicitly for laboratory research use, rather than human administration, sit outside this clinical approval framework entirely. This is the category under which research-grade immunomodulatory peptides are legitimately supplied and purchased, provided they are clearly labeled as not for human consumption and used strictly within a research setting. Researchers should never conflate a research-use compound's availability with any implied regulatory clearance for therapeutic use. That gap, between what's purchasable for bench research and what's cleared for clinical administration, is one of the most consistently misunderstood aspects of the peptide therapeutics field, and it's worth reading closely before designing any study that anticipates eventual clinical translation.

Where Should Immunomodulatory Peptide Research Focus Next?

If you're setting research priorities in this space right now, the mechanistic evidence points toward a few concrete choices worth making early rather than discovering the hard way after months of bench work.

Prioritize TLR-targeted adjuvant candidates whose predicted pathway fingerprint has already been matched computationally before you synthesize them. The docking and pathway-enrichment tools available now make it possible to rule out a poor TLR-binding candidate before spending synthesis budget on it, and skipping that step is the most common way research time gets wasted in this field.

Pair computational triage with early pharmacokinetic stabilization work, cyclization, D-amino acid substitution, or nanocarrier formulation, well before committing to animal studies. Too many labs still treat delivery engineering as a problem to solve after a candidate shows in vitro promise, when it should run in parallel from the start.

The field's reproducibility problem deserves more attention than it gets. Report peptide sourcing, purity verification method, and lot-specific documentation explicitly in your methods sections. Variability introduced by inconsistent peptide quality across studies is an underappreciated confound, and it's entirely avoidable with better sourcing discipline across the field.

— Tintastic

Sourcing Research-Grade Peptides for Immunology Studies

Reproducibility problems in immunomodulatory peptide research frequently trace back to something unglamorous: inconsistent peptide purity between batches or suppliers. Peptastic Labs addresses this directly, supplying peptides independently verified to 99 percent purity or higher via HPLC, each backed by a Certificate of Analysis available on request.

For immunology work specifically, that documentation matters at every stage of assay design. A COA lets you confirm the exact lot's purity before running a costly cytokine panel, rather than discovering a contamination issue after the fact. Pairing a documented benchmark peptide, an LL-37 reference standard, for example, with your novel candidate in the same assay run gives you a built-in positive control with known provenance. Peptastic Labs' catalog spans more than 22 independently tested compounds across immunology and related research areas, with bulk and wholesale options available for labs running larger screening programs. If your next study depends on knowing exactly what's in the vial, Peptastic Labs' research-grade peptide catalog is a practical place to start sourcing.

Where to Go Next for Mechanistic and Translational Detail

A handful of resources cover this field's essential ground for anyone building a research program around immunomodulatory peptides.

This article is general information, not a substitute for advice from a qualified doctor. Consult a qualified healthcare professional about your own circumstances before acting on anything here.
